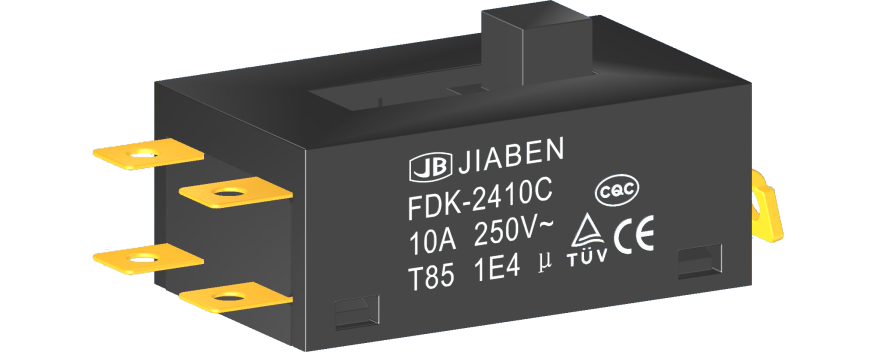

◆FDK系列是一款通用型的推拉开关，也叫滑动开关，广泛应用于各类需要档位控制的电动工具和小家电，如：热风枪、电吹风等。
◆FDK series are general type slide switches, commonly for used in power-tools and small home appliances such as Heat Guns, Hair Drvers, etc.
技术数据Technical data
→机械耐久寿命 Mechanical life endurance≥5E4
→电气耐久寿命 Electrical life endurance≥1E4
→最大电流 Max. current at 250V10A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥100M Ohm
→基本介电强度 Dielectric strength of function500V
→加强介电强度 Dielectric strength of reinforced500V
→环境温度 Ambient temperature0°C~85°C
→阻燃等级 FlammabilityUL 94V-0
→防护等级 Protection typeIP40
→适用于II类防护器具 Suitable for appliances of protection class II
